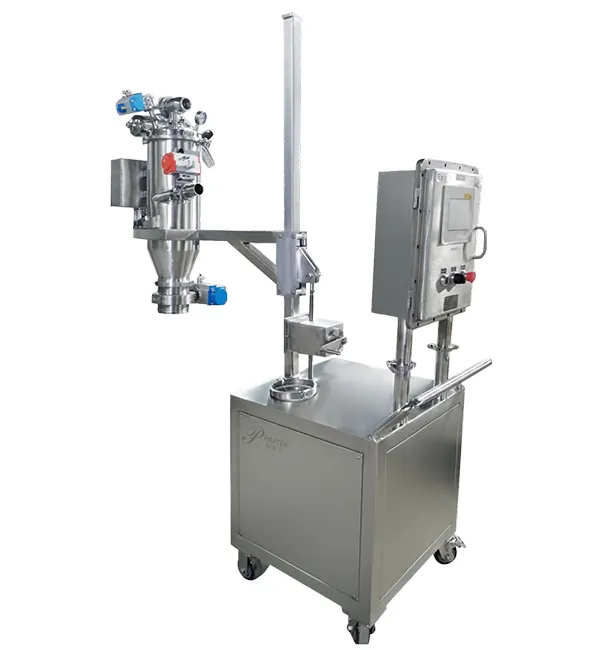

Mobile Vacuum Feeder
Vacuum conveyor mounted on a wheeled frame with an electric lifting column for dust-free transferring of powders and granules across multiple areas
The mobile vacuum feeder consists of a vacuum system, back-blow cleaning system, filtration system, inlet and discharge butterfly valves, and a movable caster-mounted frame. Free from fixed installation constraints, it can be flexibly used across multiple workstations or workshops. The electric lifting mechanism allows easy docking with equipment at different heights, optimizing floor space and improving layout efficiency.
The vacuum feeding system features quick assembly and disassembly without tools, enabling fast cleaning in compliance with GMP standards. Its fully enclosed design prevents material leakage and ensures operator safety. The mobile vacuum feeder is widely used in pharmaceutical, nutraceutical, food, and chemical production.
| Model | ||||
| Vacuum generator model | VTML100 | VTML200 | VTML400 | VTML800 |
| Compressed air pressure | 0.5–0.8MPa | 0.5–0.8MPa | 0.5–0.8MPa | 0.5–0.8MPa |
| Working pressure | 0.5–0.8MPa | 0.5–0.8MPa | 0.5–0.8MPa | 0.5–0.8MPa |
| Air consumption | 0.4m³/min | 0.8m³/min | 1.8m³/min | 3.6m³/min |
| Conveying capacity | 0.1–0.3T/h | 0.3–0.9T/h | 0.9–2.2T/h | 2.0–4.0T/h |
| Filter type | Ti07 imported filter, PTFE filter, PE-HD filter, sintered Ti filter | Ti07 imported filter, PTFE filter, PE-HD filter, sintered Ti filter | PE-HD filter, sintered Ti filter | PE-HD filter, sintered Ti filter |
| Filter area | 0.3m² | 0.3m² | 0.9m² | 1.8m² |
| Suction inlet diameter | DN25 | DN50 | DN75–50 | DN100–75 or DN100 |
| Discharge outlet diameter | 150mm | 150mm | 200mm | 200mm |
| Effective hopper volume | 5L | 12L | 22L | 50L |
- Provides sealed powder transfer with zero dust emission
- Adjustable height up to 1800mm, suitable for variable docking requirements
- Flexible design for use across multiple workstations and workshops
- Quick assembly and disassembly, supporting CIP cleaning and meeting GMP requirements with tool-free maintenance
- Equipped with static elimination and inert gas purging for handling combustible materials safely
Active pharmaceutical ingredients (APIs)
Food additives
Pigments
The mobile vacuum feeder can be easily connected to downstream equipment at different heights, such as mixers, reactors, and storage bins.
For powder processing, we also provide a one-stop solution.
