Production-Scale Spheronizer (Marumerizer)
Centrifugal spheronizer for converting cylindrical extruded granules into spheres of uniform size
The production-scale spheronizer transforms cylindrical extrudates into perfectly rounded pellets of uniform size through a high-speed centrifugal process. As the extruded material enters the chamber, the rotating disc with breaker teeth cuts it into uniform short cylinders. Under the combined forces of centrifugal motion, friction between the particles, wall, and disc, and airflow within the chamber, the granules undergo continuous three-dimensional rolling and tumbling. This uniform kneading motion shapes the particles into smooth, consistent spheres.
The spheronizeation equipment consists of a feed hopper, product chamber, rotating disc, discharge assembly, optional air exhaust and dehumidification cabinet, control system, and pneumatic system. Custom configurations are available to suit various research or process requirements.
| Model | ||||||
| Batch capacity | ≤0.8kg/batch | ≤1.6kg/batch | ≤2.5kg/batch | ≤8.0kg/batch | ≤20.0kg/batch | |
| Spheronizing time | 0.5–4.0min/batch | |||||
| Rotation speed | 50–1400rpm | 50–1400rpm | 50–1400rpm | 50–1300rpm | 50–600rpm | |
| Qualified rate | ≥90% | |||||
| Compressed air | Pressure | 0.4–0.6Pa | ||||
| Consumption | 0.4–0.5m³/min | |||||
| Power supply | 3 phase, 380V | |||||
| Noise level | 1.5dB | 2.2dB | 4dB | 7.5dB | 11dB | |
| Overall dimensions (L×W×H) | 700×450×1000mm | 800×500×1100mm | 1380×750×1300mm | 1500×900×1300mm | 1800×1200×1400mm | |
| Net weight | 100kg | 200kg | 360kg | 600kg | 1000kg | |
Pharmaceutical micro-pellets

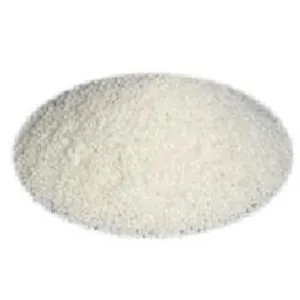

Sustained-release drug carrier spheres
This spheronizer can be integrated with Partek’s extruders to form a complete pelletizing system.
